3DG2060 - SILICON NPN TRANSISTOR

LZG

📥 Download Datasheet

3DG2060 Datasheet Preview — Preview of 3DG2060 PDF

datasheet Preview Page 2

Datasheet Details

Part number	3DG2060
Manufacturer	LZG
File Size	368.26 KB
Description	SILICON NPN TRANSISTOR
Datasheet	3DG2060-LZG.pdf

3DG2060 Product details

Features

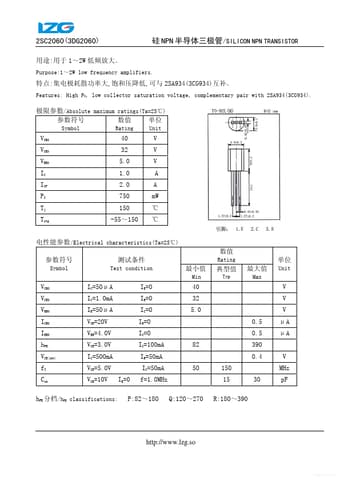

High PC, low collector saturation voltage, complementary pair with 2SA934(3CG934). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC ICP PC Tj Tstg 40 32 5.0 1.0 2.0 750 150 -55～150 V V V A A mW ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) fT Cob IC=50μA IC=1.0mA IE=50μA VCB=20V VEB=4.0V VCE=3.0V IC=500mA VCE=5.0V VCB=10V IE=0 IE=0 IB=0 IC=0 IE=0 IC=0 IC=100mA IB=50mA IC=50.
