3DG1815 - SILICON NPN TRANSISTOR

Datasheet Details

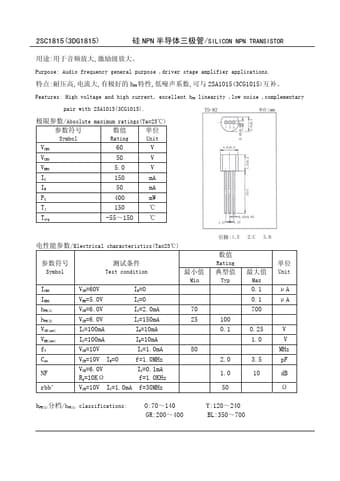

High voltage and high current, excellent hFE linearity ,low noise ,complementary pair with 2SA1015(3CG1015). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 60 V VCEO 50 V VEBO 5.0 V IC 150 mA IB 50 mA PC 400 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE(sat) fT Cob NF rbb′ VCB=60V IE=0 VEB=5.0V IC=0 VCE=6.0V IC=2.0mA VCE=6.0V IC=150mA IC=100mA IB=10mA IC=100mA.
