2SC2230A - SILICON NPN TRANSISTOR

Product Overview

LZG

Part number	2SC2230A
Manufacturer	LZG
File Size	206.47 KB
Description	SILICON NPN TRANSISTOR
Datasheet	2SC2230A Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SC2230A, 2SC2230. Please refer to the document for exact specifications by model.

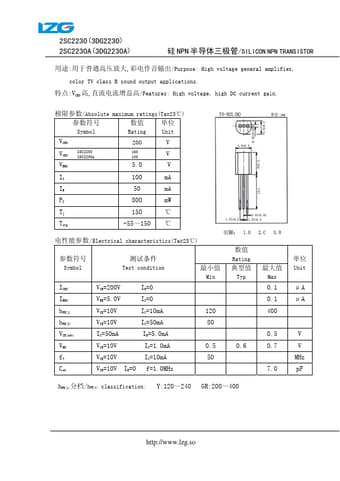

Additional preview pages of the 2SC2230A datasheet.

High voltage, high DC current gain. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 200 V VCEO VEBO 2SC2230 2SC2230A 160 180 V 5.0 V IC 100 mA IB 50 mA PC 800 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE fT Cob VCB=200V IE=0 VEB=5.0V IC=0 VCE=10V IC=10mA VCE=10V IC=50mA IC=50mA IB=5.0mA VCE=10V IC=1.0mA VCE=10V IC=10mA VCB=10V IE=0 f=1.0MHz Min 120 80 0.5 50 Rating.
