2SC1360A, 2SC1360 - SILICON PNP TRANSISTOR

Name: 2SC1360A
SKU: 2SC1360A-1140956

LZG

The 2SC1360A by LZG is a SILICON PNP TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	2SC1360A, 2SC1360
Manufacturer	LZG
File Size	193.16 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SC1360-LZG.pdf
Note	This datasheet PDF includes multiple part numbers: 2SC1360A, 2SC1360. Please refer to the document for exact specifications by model.

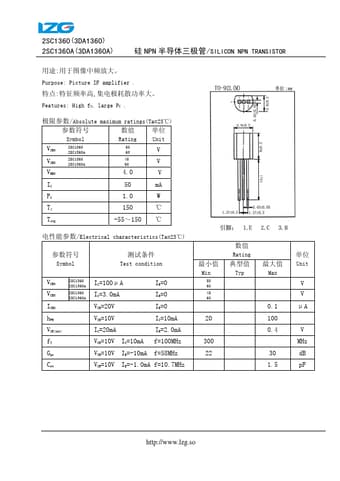

Additional preview pages of the 2SC1360A datasheet.

High fT, large PC . /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO 2SC1360 2SC1360A 2SC1360 2SC1360A 50 60 V 45 60 V 4.0 V IC 50 mA PC 1.0 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition VCBO VCEO ICBO hFE VCE(sat) fT Gpe Cre 2SC1360 2SC1360A 2SC1360 2SC1360A IC=100μA IE=0 IC=3.0mA IB=0 VCB=20V IE=0 VCE=10V IC=10mA IC=20mA IB=2.0mA VCE=10V IC=10mA f=100MHz VCB=10V IE=-10mA f=58MHz VCB=10V IE=-1.0mA.
