2SA1371 - SILICON PNP TRANSISTOR

Name: 2SA1371
SKU: 2SA1371-796248

LZG

The 2SA1371 by LZG is a SILICON PNP TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1371
Manufacturer	LZG
File Size	193.30 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA1371-LZG.pdf

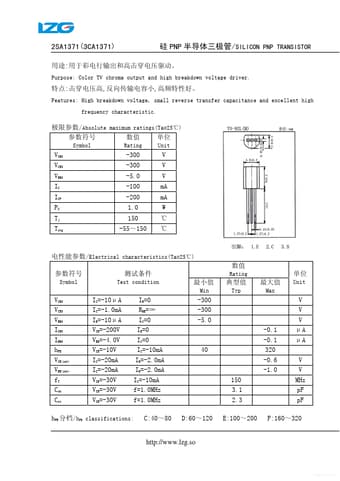

Additional preview pages of the 2SA1371 datasheet.

High breakdown voltage, small reverse transfer capacitance and excellent high frequency characteristic. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC ICP PC Tj Tstg -300 -300 -5.0 -100 -200 1.0 150 -55～150 V V V mA mA W ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob Cre IC=-10μA IC=-1.0mA IE=-10μA VCB=-200V VEB=-4.0V VCE=-10V IC=-20mA IC=-20mA VCE=-30V VCB=.
