LS8297CT, LS8297 - STEPPER MOTOR CONTROLLER

LS8297CT Description

LSI/CSI UL ® LS8297 LS8297CT (631) 271-0400 FAX (631) 271-0405 April 2009 LSI Computer Systems, Inc.1235 Walt Whitman Road, Melville, NY 11747 A38.
The LS8297 Stepper Motor Controller generates four phase drive signal outputs for controlling two phase Bipolar and four phase Unipolar motors.

LS8297CT Features

* Controls Bipolar and Unipolar Motors
* Cost-effective, low current, pin compatible replacement for L297
* Torque ripple compensated half-steps - LS8297CT
* Half and full step modes
* Normal/wave drive
* Direction control
* Reset input

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LS8297CT, LS8297. Please refer to the document for exact specifications by model.

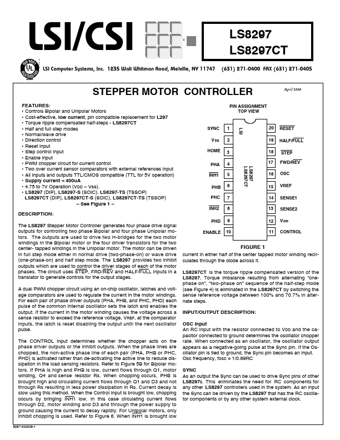

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LS8297CT, LS8297
Manufacturer
LSI
File Size
279.73 KB
Datasheet
LS8297-LSI.pdf
Description
STEPPER MOTOR CONTROLLER
Note
This datasheet PDF includes multiple part numbers: LS8297CT, LS8297.
Please refer to the document for exact specifications by model.
