S-L2N7002KLT1G Small Signal MOSFET

S-L2N7002KLT1G Description

LESHAN RADIO COMPANY, LTD.Small Signal MOSFET L2N7002KLT1G 380 mAmps, 60 Volts N *Channel SOT *23 S-L2N7002KLT1G *.

S-L2N7002KLT1G Features

* 1)ESD Protected 2)Low RDS(on) 3)Surface Mount Package 4)This is a Pb

S-L2N7002KLT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
* APPLICATIONS 1)Low Side Load Switch 2)Level Shift Circuits 3)DC
* DC Converter 4)Portable Applications i. e. DSC, PDA, Cell Phone, etc. 3 1 2 SOT
* 23 V(BR)DSS 60 V RDS(on) MAX 2.3 W @ 10 V

📥 Download Datasheet

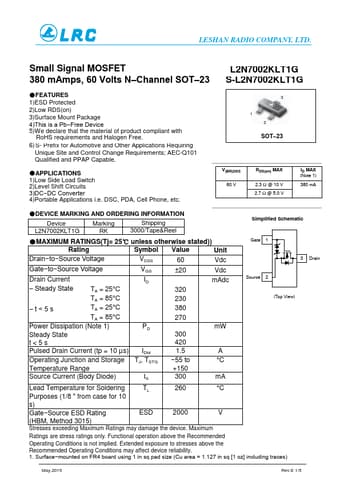

Preview of S-L2N7002KLT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-L2N7002KLT1G
Manufacturer
LRC
File Size
699.47 KB
Datasheet
S-L2N7002KLT1G-LRC.pdf
Description
Small Signal MOSFET
