S-L2N7002FDW1T1G Small Signal MOSFET

S-L2N7002FDW1T1G Description

Small Signal MOSFET 30 Volts N *Channel SC *88 * We declare that the material of product are Halogen Free and compliance with Ro.

S-L2N7002FDW1T1G Features

* RDS(ON) ≦8Ω@VGS=4V
* RDS(ON) ≦13Ω@VGS=2.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and maximum DC current capability
* Capable doing Cu wire bonding

📥 Download Datasheet

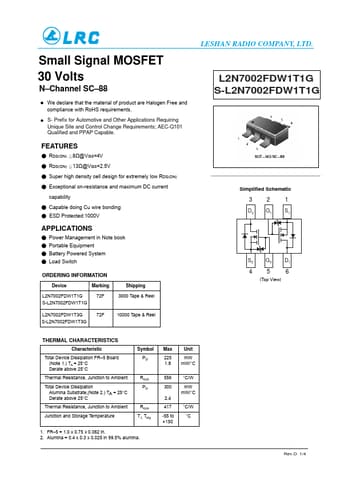

Preview of S-L2N7002FDW1T1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-L2N7002FDW1T1G
Manufacturer
LRC
File Size
296.88 KB
Datasheet
S-L2N7002FDW1T1G-LRC.pdf
Description
Small Signal MOSFET
