LDTA114GWT1G - Bias Resistor Transistor

LRC

📥 Download Datasheet

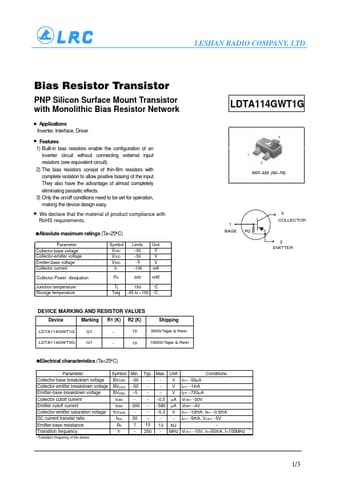

LDTA114GWT1G Datasheet Preview — Preview of LDTA114GWT1G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LDTA114GWT1G
Manufacturer	LRC
File Size	505.13 KB
Description	Bias Resistor Transistor
Datasheet	LDTA114GWT1G-LRC.pdf

LDTA114GWT1G Product details

Features

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.
We declare that the material of product compliance wit.
