LDTA114EET1 - Digital transistors

LRC

📥 Download Datasheet

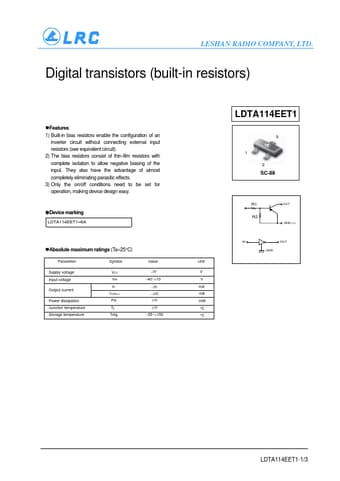

LDTA114EET1 Datasheet Preview — Preview of LDTA114EET1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LDTA114EET1
Manufacturer	LRC
File Size	209.43 KB
Description	Digital transistors
Datasheet	LDTA114EET1-LRC.pdf

LDTA114EET1 Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. zDevice marking LDTA114EET1=6A zAbsolute maximum ratings (Ta=25°C) P.
