DF30DB80 - High Current Glass Passivated Molding Three -Phase Bridge Rectifier

Name: DF30DB80
SKU: DF30DB80-936493

LRC

The DF30DB80 by LRC is a High Current Glass Passivated Molding Three -Phase Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	DF30DB80
Manufacturer	LRC
File Size	413.18 KB
Description	High Current Glass Passivated Molding Three -Phase Bridge Rectifier
Datasheet	DF30DB80-LRC.pdf

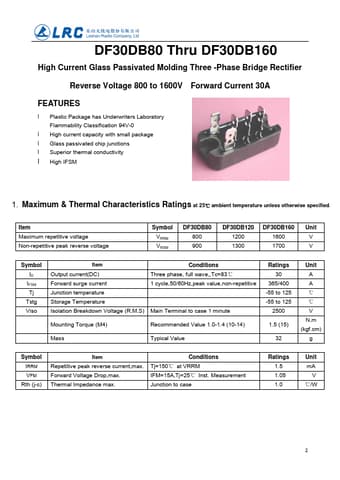

Additional preview pages of the DF30DB80 datasheet.

l Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 l High current capacity with small package l Glass passivated chip junctions l Superior thermal conductivity l High IFSM 1. Maximum & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Item Maximum repetitive voltage Non-repetitive peak reverse voltage Symbol VRRM VRSM DF30DB80 800 900 DF30DB120 1200 1300 DF30DB160 1600 1700 Unit V V Symbol ID IFSM Tj Tstg Viso Item Output.
