DF30DB160, DF30DB80 - High Current Glass Passivated Molding Three -Phase Bridge Rectifier

Name: DF30DB160
SKU: DF30DB160-936495

LRC

The DF30DB160 by LRC is a High Current Glass Passivated Molding Three -Phase Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	DF30DB160, DF30DB80
Manufacturer	LRC
File Size	413.18 KB
Description	High Current Glass Passivated Molding Three -Phase Bridge Rectifier
Datasheet	DF30DB80-LRC.pdf
Note	This datasheet PDF includes multiple part numbers: DF30DB160, DF30DB80. Please refer to the document for exact specifications by model.

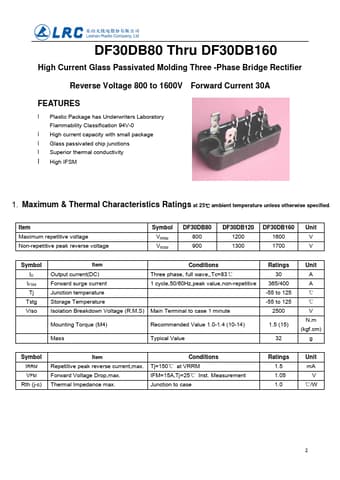

Additional preview pages of the DF30DB160 datasheet.

l Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 l High current capacity with small package l Glass passivated chip junctions l Superior thermal conductivity l High IFSM 1. Maximum & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Item Maximum repetitive voltage Non-repetitive peak reverse voltage Symbol VRRM VRSM DF30DB80 800 900 DF30DB120 1200 1300 DF30DB160 1600 1700 Unit V V Symbol ID IFSM Tj Tstg Viso Item Output.
