D3SB80 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Product Overview

LRC

Part number	D3SB80
Manufacturer	LRC
File Size	181.04 KB
Description	High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Datasheet	D3SB80 Datasheet
Note	This datasheet PDF includes multiple part numbers: D3SB80, D3SB10. Please refer to the document for exact specifications by model.

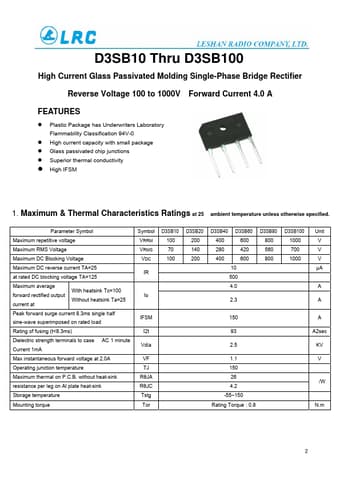

Additional preview pages of the D3SB80 datasheet.

z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified. Parameter Symbol Maximum repetitive voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum DC reverse current TA=25 at rated DC blocking voltage TA=125 Maximum average forward rectifi.
