D3SBA20 - General Purpose Rectifiers SIL Bridges

Shindengen

Key Features

œ Thin Single In-Line Package.
œ High IFSM.
œ Applicable to Automatic Insertion.

D3SBA20 general purpose rectifiers sil bridges by Shindengen - Datasheet Preview

Datasheet Details

Part number	D3SBA20
Manufacturer	Shindengen
File Size	307.14 KB
Description	General Purpose Rectifiers SIL Bridges
Datasheet	D3SBA20 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
D3SBA20	SILICON BRIDGE RECTIFIER	EIC discrete Semiconductors
D3SBA10	SILICON BRIDGE RECTIFIER	EIC discrete Semiconductors
D3SBA100	SILICON BRIDGE RECTIFIER	EIC
D3SBA40	SILICON BRIDGE RECTIFIER	EIC discrete Semiconductors
D3SBA60	(D3SBAx0) SILICON BRIDGE RECTIFIER	EIC discrete Semiconductors

Other Datasheets by Shindengen

Part Number	Description
D3SB20	General Purpose Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

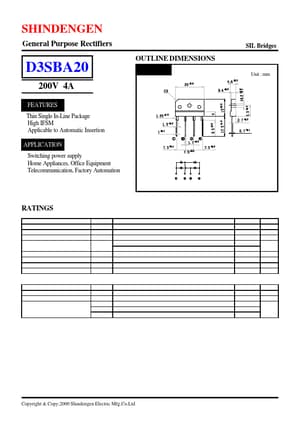

SHINDENGEN General Purpose Rectifiers SIL Bridges D3SBA20 200V 4A FEATURES •œ Thin Single In-Line Package •œ High IFSM •œ Applicable to Automatic Insertion APPLICATION OUTLINE DIMENSIONS Case : 3S Unit : mm •œ Switching power supply •œ Home Appliances, Office Equipment •œ Telecommunication, Factory Automation RATINGS •œAbsolute Maximum Ratings (If not specified Tc=25•Ž) Item Symbol Conditions Ratings Unit Storage Temperature Tstg -40•`150 •Ž Operating Junction Temperature Tj 150 •Ž Maximum Reverse Voltage VRM 200 V IO 50Hz sine wave, R-load With heatsink Tc=108•Ž Average Rectified Forward Current 4 A 50Hz sine wave, R-load Without heatsink Ta=25•Ž 2.
