LTV-358T - Photocoupler

LTV-358T Description

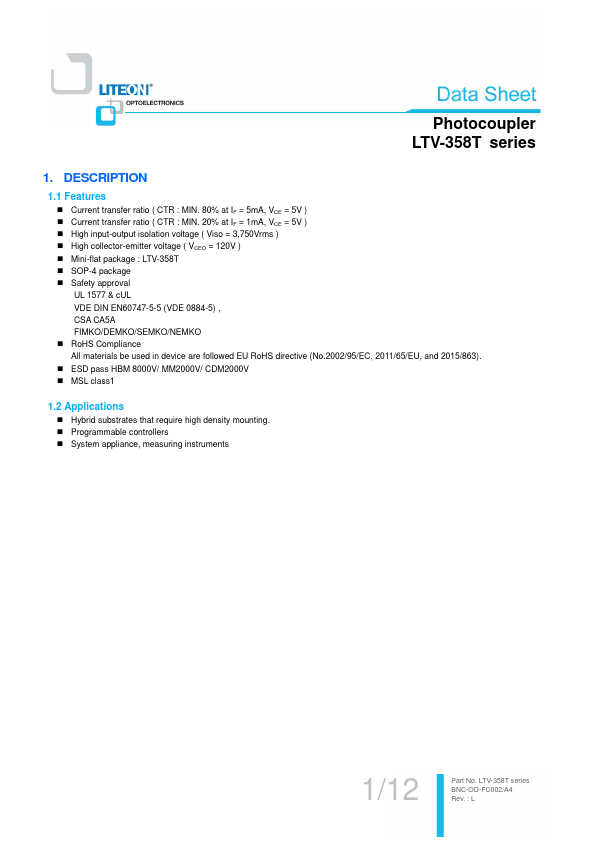

Photocoupler Product Data Sheet LTV-358T Spec No.:DS70-2001-022 Effective Date: 12/25/2018 Revision: L LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
1.

LTV-358T Features

* Current transfer ratio ( CTR : MIN. 80% at IF = 5mA, VCE = 5V ) Current transfer ratio ( CTR : MIN. 20% at IF = 1mA, VCE = 5V ) High input-output isolation voltage ( Viso = 3,750Vrms ) High collector-emitter voltage ( VCEO = 120V ) Mini-flat package : LTV-358T SOP-4 package Safety approval UL 1577 &

LTV-358T Applications

* Hybrid substrates that require high density mounting. Programmable controllers System appliance, measuring instruments 1/12 Part No. LTV-358T series BNC-OD-FC002/A4 Rev. : L 2. PACKAGE DIMENSIONS 2.1 LTV-358T series Photocoupler LTV-358T series Notes : 1. 1-digit year code, Example : 2010 = A 2

📥 Download Datasheet

Preview of LTV-358T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTV-358T
Manufacturer
LITEON
File Size
370.29 KB
Datasheet
LTV-358T-LITEON.pdf
Description
Photocoupler
