LTV-355T - Photocoupler

LTV-355T Description

Photocoupler Product Data Sheet LTV-355T Spec No.:DS70-2001-006 Effective Date: 04/26/2022 Revision: O LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
1. Current transfer ratio ( CTR : 600%~7500% at IF = 1mA, VCE = 2V ). High input-output isolation voltage ( Viso = 3,750Vrms ).

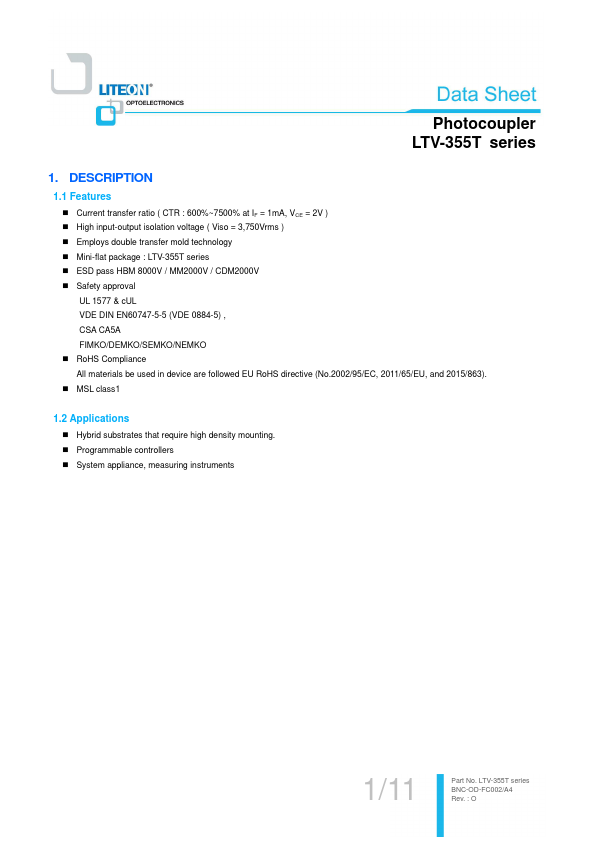

LTV-355T Features

* Current transfer ratio ( CTR : 600%~7500% at IF = 1mA, VCE = 2V )
* High input-output isolation voltage ( Viso = 3,750Vrms )
* Employs double transfer mold technology
* Mini-flat package : LTV-355T series
* ESD pass HBM 8000V / MM2000V / CDM2000V
* Safety approval UL 1577 &

LTV-355T Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers

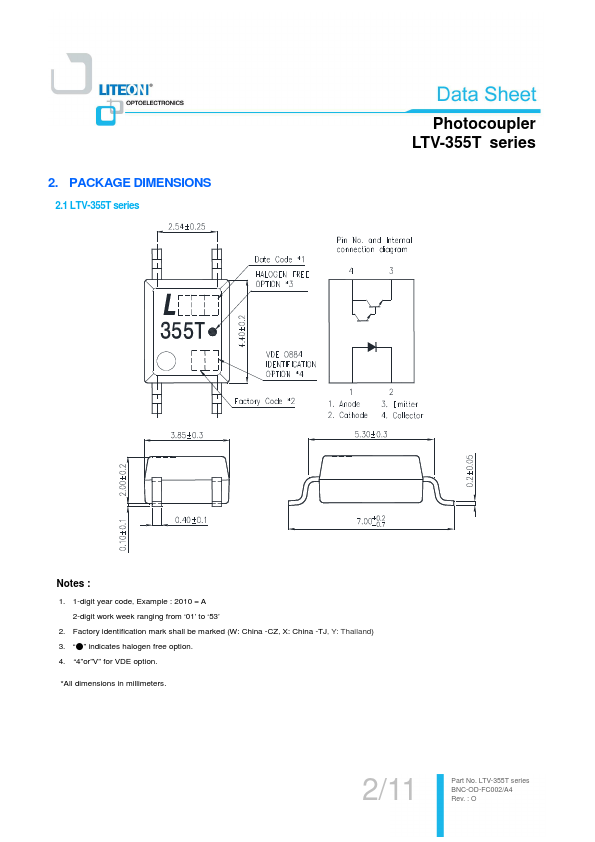

* System appliance, measuring instruments 1/11 Part No. LTV-355T series BNC-OD-FC002/A4 Rev. : O 2. PACKAGE DIMENSIONS 2.1 LTV-355T series Photocoupler LTV-355T series Notes : 1. 1-digit year code, Ex

📥 Download Datasheet

Preview of LTV-355T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTV-355T
Manufacturer
LITEON
File Size
315.69 KB
Datasheet
LTV-355T-LITEON.pdf
Description
Photocoupler
