LTST-C170KFKT - SMD LED

LITEON

📥 Download Datasheet

LTST-C170KFKT Datasheet Preview — Preview of LTST-C170KFKT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTST-C170KFKT
Manufacturer	LITEON
File Size	702.11 KB
Description	SMD LED
Datasheet	LTST-C170KFKT-LITEON.pdf

LTST-C170KFKT Product details

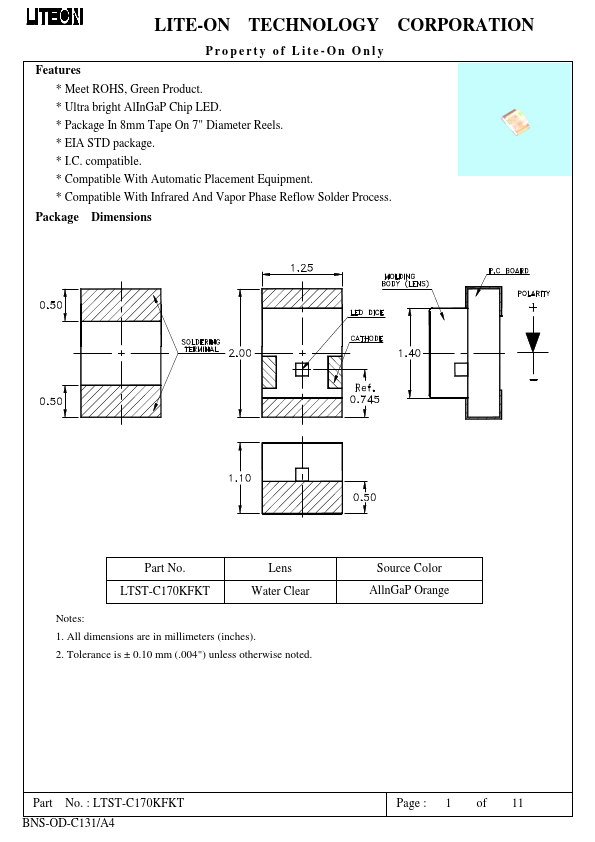

Features

Meet ROHS, Green Product.
Ultra bright AlInGaP Chip LED.
Package In 8mm Tape On 7" Diameter Reels.
EIA STD package.
I. C. compatible.
Compatible With Automatic Placement Equipment.
Compatible With Infrared And Vapor Phase Reflow Solder Process. Package Dimensions Part No. LTST-C170KFKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color AllnGaP Orange Part No. :.
