LTST-C150CKT - SMD LED

LITEON

📥 Download Datasheet

LTST-C150CKT Datasheet Preview — Preview of LTST-C150CKT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTST-C150CKT
Manufacturer	LITEON
File Size	852.95 KB
Description	SMD LED
Datasheet	LTST-C150CKT-LITEON.pdf

LTST-C150CKT Product details

Features

Meet ROHS, Green Product.
Package In 8mm Tape On 7" Diameter Reels.
EIA STD package.
I. C. compatible.
Compatible With Automatic Placement Equipment.

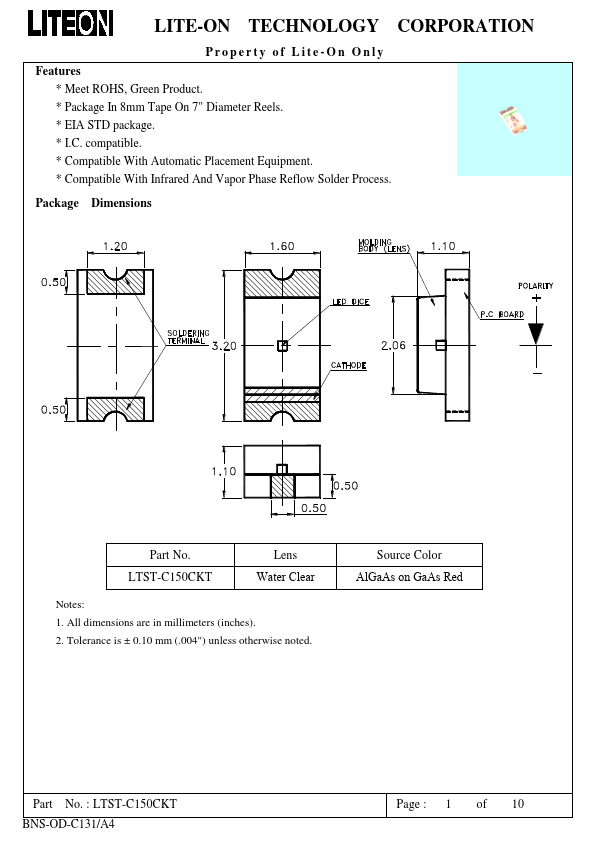

Compatible With Infrared And Vapor Phase Reflow Solder Process. Package Dimensions Part No. LTST-C150CKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Source Color AlGaAs on GaAs Red Part No. : LTST-C150CKT BNS-OD-C131/A4 Page.
