LTL30EKDFGJ-004A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL30EKDFGJ-004A Datasheet Preview — Preview of LTL30EKDFGJ-004A PDF

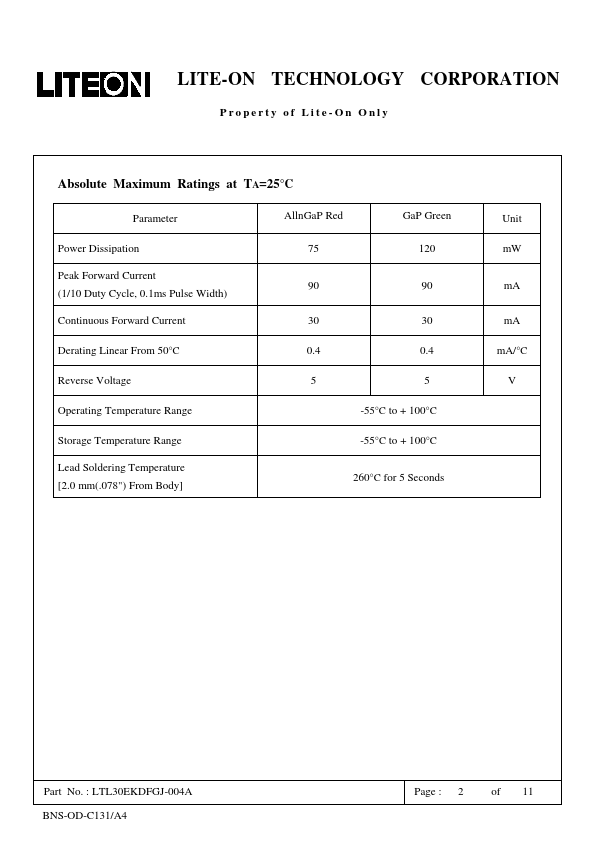

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL30EKDFGJ-004A
Manufacturer	LITEON
File Size	644.45 KB
Description	Through Hole Lamp
Datasheet	LTL30EKDFGJ-004A-LITEON.pdf

LTL30EKDFGJ-004A Product details

Features

AllnGaP Red and Gap Green chips are matched for uniform light output.
T-1 3/4 type package.
Long life-solid state reliability.
Low power consumption.

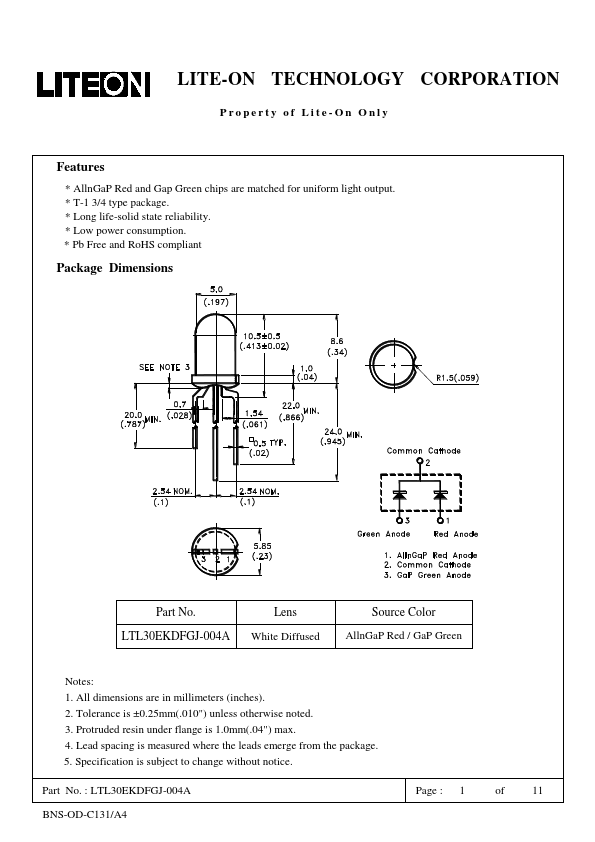

Pb Free and RoHS compliant Package Dimensions Part No. LTL30EKDFGJ-004A Lens White Diffused Source Color AllnGaP Red / GaP Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measure.
