SBL1040CT Description

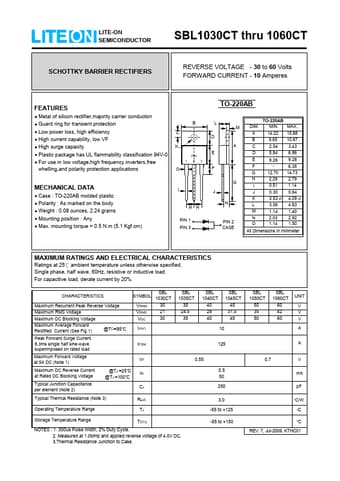

LITE-ON SEMICONDUCTOR SBL1030CT thru 1060CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 10 Amperes .SBL1040CT Features
* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and polSBL1040CT Applications
* B C K PIN 123 O MECHANICAL DATA Case : TO-220AB molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) I HH PIN 1 PIN 3 TO-220AB L M D A E F G J N PIN 2 CASE TO-220AB DIM. MIN. MAX. A 14.22 15.88 B 9.
