Description
The LTV-340 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system.
Features
- 1.0 A maximum peak output current 0.8 A minimum peak output current Rail-to-rail output voltage
Functional Diagram

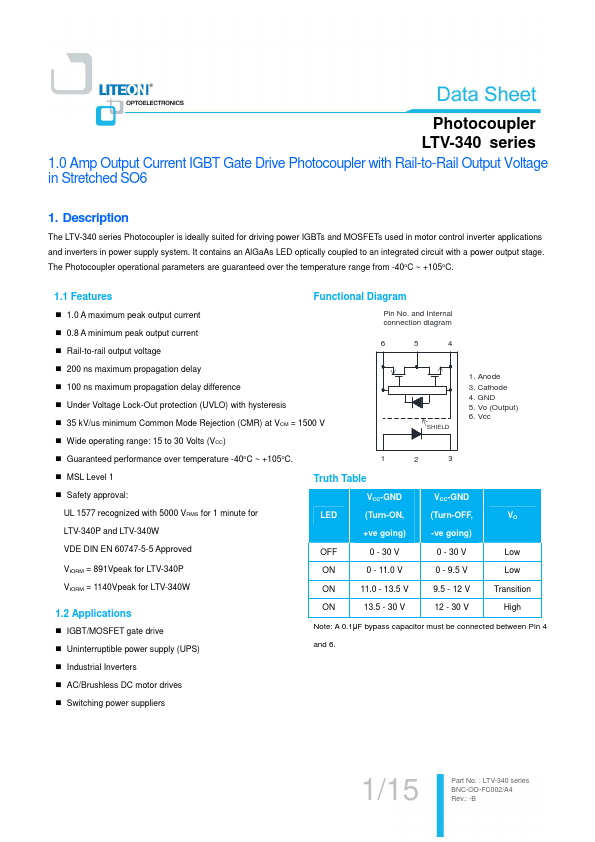

Pin No. and Internal connection diagram
6
5
4
200 ns maximum propagation delay 100 ns maximum propagation delay difference Under Voltage Lock-Out protection (UVLO) with hysteresis 35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V Wide operating range: 15 to 30 Volts (VCC) Guaranteed performance over temperature -40oC ~ +105oC. SHIELD
1. Anode
3. Cathode 4. GND 5. V.
