LTS-546AJD, LTS-546AJD-LITE Datasheet - LITE-ON

LTS-546AJD LED Display

The LTS-546AJD is a 0.52 inch (13.2 mm) height single digit display. This device utilizes AlInGaP Hyper red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP Hyper RED LTS-546AJD DESCRIPTION Common Anode Rt..

LTS-546AJD-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTS-546AJD, LTS-546AJD-LITE. Please refer to the document for exact specifications by model.

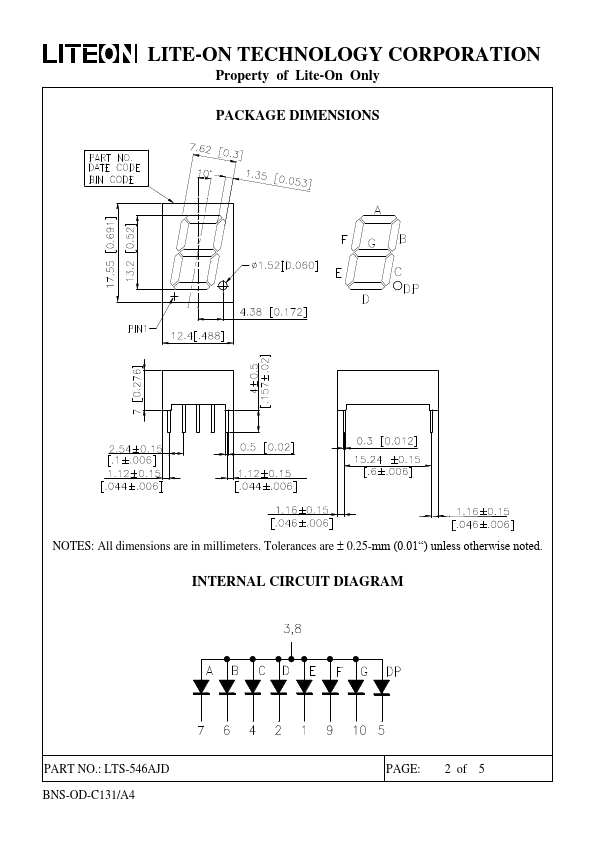

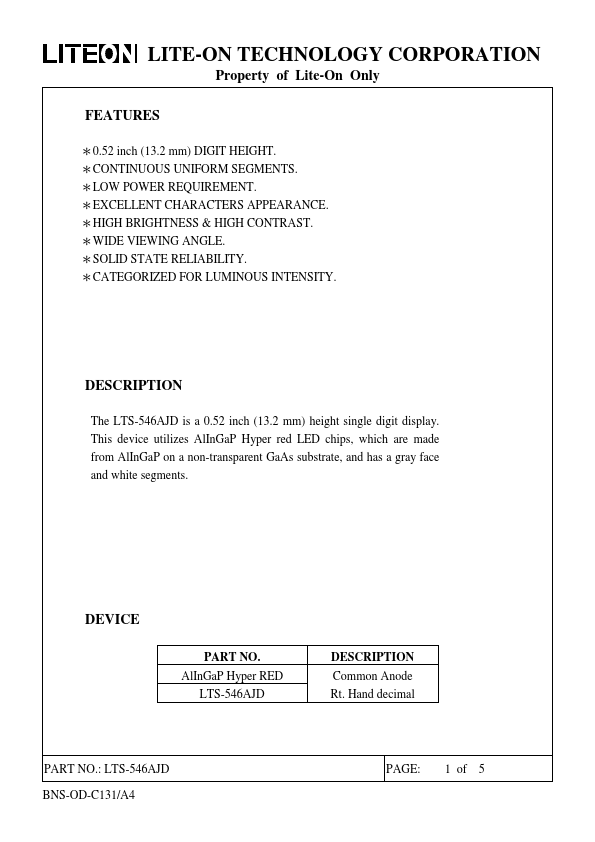

LTS-546AJD Datasheet Preview Page 2 LTS-546AJD Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-546AJD, LTS-546AJD-LITE

Manufacturer:

LITE-ON

File Size:

368.85 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTS-546AJD, LTS-546AJD-LITE.
Please refer to the document for exact specifications by model.
