LTS-546AWC - LED Display

This page provides the datasheet information for the LTS-546AWC, a member of the LTS-546AWC-Lite LED Display family.

Description

The LTS-546AWC is a 0.52-inch (13.2-mm) height single digit display.

This device uses AlGaAs red LED chips (AlGaAs epi on GaAs substrate).

The display has gray face and white segments.

Features

＊0.52 inch (13.2-mm) DIGIT HEIGHT ＊.

Datasheet Details

Part number	LTS-546AWC
Manufacturer	Lite-On Technology
File Size	358.90 KB
Description	LED Display
Datasheet	LTS-546AWC Datasheet

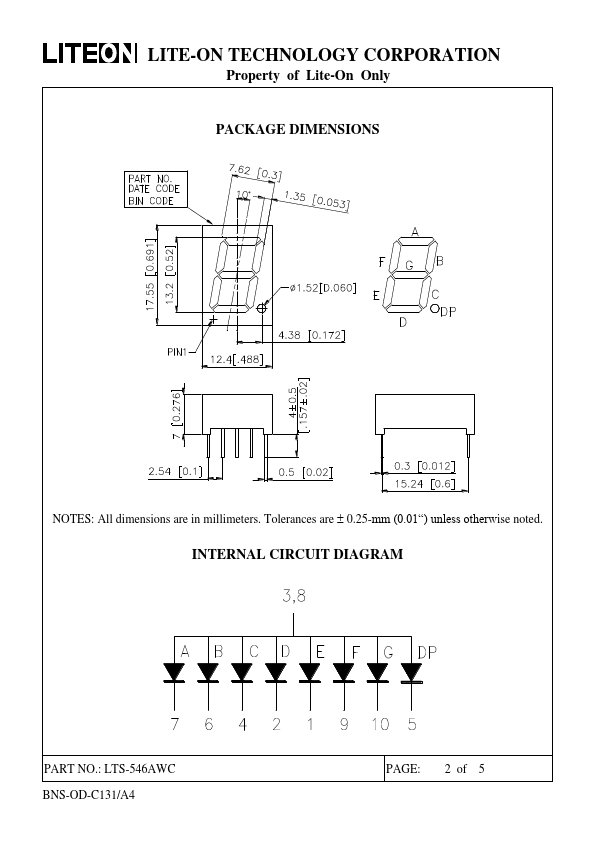

Additional preview pages of the LTS-546AWC datasheet.

📁 Similar Datasheet

LTS-546AWC-01T - LED Display (LITE-ON)

LTS-546ACB - LED Display (LITE-ON)

LTS-546AHG-06 - LED Display (LITE-ON)

LTS-546AJD - LED Display (LITE-ON)

LTS-546AJD-25 - LED Display (LITE-ON)

LTS-546AJG - LED Display (LITE-ON)

LTS-546AKF - LED Display (LITE-ON)

LTS-546AKS - LED Display (LITE-ON)

LTS-547AE - LED Display (LITE-ON)

LTS-547AG - LED Display (LITE-ON)

Full PDF Text Transcription

Click to expand full text

LED Display Product Data Sheet LTS-546AWC Spec No.: DS-30-98-059 Effective Date: 01/26/2005 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only FEATURES ＊0.52 inch (13.2-mm) DIGIT HEIGHT ＊CONTINUOUS UNIFORM SEGMENTS ＊LOW POWER REQUIREMENT ＊EXCELLENT CHARACTERS APPEARANCE ＊HIGH BRIGHTNESS & HIGH CONTRAST ＊WIDE VIEWING ANGLE ＊SOLID STATE RELIABILITY ＊CATEGORIZED FOR LUMINOUS INTENSITY ＊LEAD-FREE PACKAGE (ACCORDING TO ROHS) DESCRIPTION The LTS-546AWC is a 0.52-inch (13.2-mm) height single digit display.
