LTV-4N37, LTV-4N35_LITE NPN-OUTPUT DC-INPUT OPTOCOUPLER

LITE-ON Electronics

Description

www.DataSheet4U.com General Purpose Type Photocoupler LTV-4N35 Series/LTV-4N37 Series 4N35 Series/4N37 Series .

📥 Download Datasheet

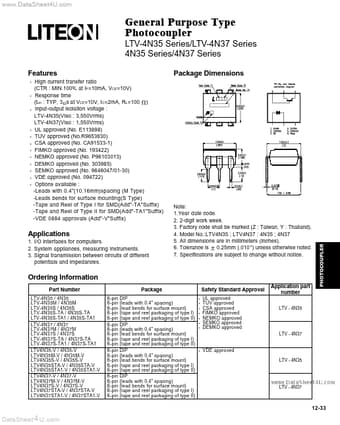

LTV-4N37 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-4N37, LTV-4N35_LITE. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTV-4N37, LTV-4N35_LITE
Manufacturer: LITE-ON Electronics
File Size: 827.95 KB
Datasheet: LTV-4N35_LITE-ONElectronics.pdf
Description: NPN-OUTPUT DC-INPUT OPTOCOUPLER
Note: This datasheet PDF includes multiple part numbers: LTV-4N37, LTV-4N35_LITE.
Please refer to the document for exact specifications by model.

Features

* High current transfer ratio (CTR : MIN.100% at IF=10mA, VCE=10V) Response time (ton : TYP, 3 s at VCE=10V, IC=2mA, RL=100 ) Input-output isolation voltage : LTV-4N35(Viso : 3,550Vrms) LTV-4N37(Viso : 1,550Vrms) UL approved (No. E113898) TUV approved (No. R9653630) CSA approved (No. CA91533-1) FIMKO a

Applications

* 1. I/O interfaces for computers. 2. System appliances, measuring instruments. 3. Signal transmission between circuits of different potentials and impedances. Ordering Information Part Number LTV-4N35 / 4N35 LTV-4N35M / 4N35M LTV-4N35S / 4N35S LTV-4N35S-TA / 4N35S-TA LTV-4N35S-TA1 / 4N35S-TA1 LTV-4N
