SS53B, SS52B Surface Mount Schottky Barrier Rectifiers

SS53B Description

SS52B-SS510B Surface Mount Schottky Barrier Rectifiers REVERSE VOLTAGE: 20 *- 100 V CURRENT: 5.0 A .

SS53B Applications

* Low profile package Built-in strain relief Metal silicon junction, majority carrier conduction High surge capability High current capability,low forward voltage drop Low power loss,high effciency For use in low voltage high frequency inverters,free 111 wheeling and polarity protection applications G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS53B, SS52B. Please refer to the document for exact specifications by model.

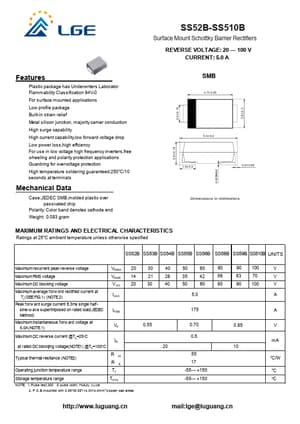

datasheet Preview Page 2

Datasheet Details

Part number
SS53B, SS52B
Manufacturer
LGE
File Size
261.06 KB
Datasheet
SS52B-LGE.pdf
Description
Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS53B, SS52B.
Please refer to the document for exact specifications by model.
