SS53CF, SS52CF SCHOTTKY BARRIER RECTIFIERS

SS53CF Description

Schottky Barrier Rectifiers Production specification SS52CF *SS54CF .

SS53CF Features

* Metal silicon junction, majority carrier conduction
* High surge capability
* High temperature soldering guaranteed: 260°C/10 seconds
* High current capability, low forward voltage drop
* Guarding for over voltage protection
* RoHS Compliant Mechanical Data
* Case: SMCF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS53CF, SS52CF. Please refer to the document for exact specifications by model.

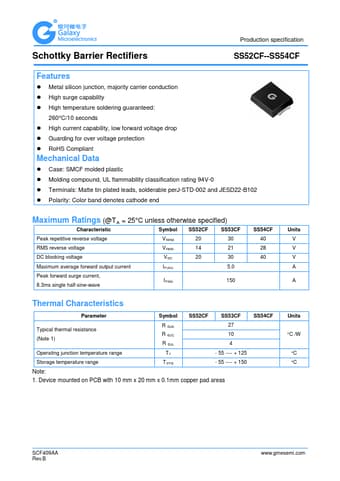

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS53CF, SS52CF
Manufacturer
GME
File Size
433.07 KB
Datasheet
SS52CF-GME.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SS53CF, SS52CF.
Please refer to the document for exact specifications by model.
