LP171WU1-A4K2 - Liquid Crystal Display

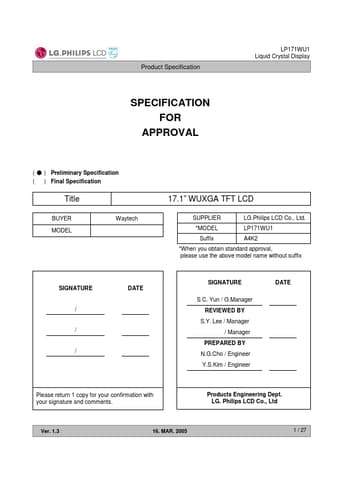

LP171WU1-A4K2 Datasheet Preview — Preview of LP171WU1-A4K2 PDF

Datasheet Details

Part number	LP171WU1-A4K2
Manufacturer	LG
File Size	517.04 KB
Description	Liquid Crystal Display
Datasheet	LP171WU1-A4K2_LG.pdf

LP171WU1-A4K2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data APPENDIX.Inspection Criteria

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 17.1 inches diagonal 382.7 (H) × 245.0 (V) × 6.6(D, max) mm 0.191 mm × 0. 191 mm 1920 horiz. by 1200 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 180 cd/m2(Typ. ) , 5 point Total 6.81 Watt(Typ. ) @ LCM circuit 2.01 Watt(Typ. ), B/L input 4.8 Watt(Typ. ) 705 g (Max. ) Transmissive mode, normally white Hard coating(2H) Glare treatment o.
