LP154WX4-TLA6 - Liquid Crystal Display

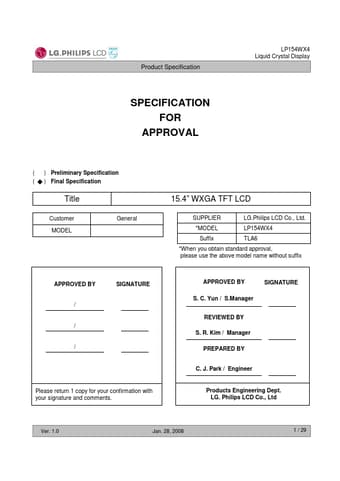

LP154WX4-TLA6 Datasheet Preview — Preview of LP154WX4-TLA6 PDF

Datasheet Details

Part number	LP154WX4-TLA6
Manufacturer	LG
File Size	571.67 KB
Description	Liquid Crystal Display
Datasheet	LP154WX4-TLA6_LG.pdf

LP154WX4-TLA6 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM Label Description PRECAUTIONS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 15.4 inches diagonal 344.0(H, typ) × 222.0(V, typ) × 6.2(D,typ) [mm] 0.25875mm × 0.25875 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.55 Watt(Typ. ) @ LCM circuit 1.4Watt(Typ. ), B/L input 4.15Watt(Typ. ) 560g(Typ. ), 575g (Max. ) Transmissive mode, normally white LGC, L.
