LP150X1-F2IB - Liquid Crystal Display

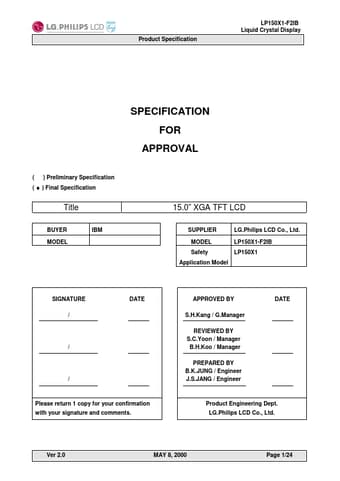

LP150X1-F2IB Datasheet Preview — Preview of LP150X1-F2IB PDF

Datasheet Details

Part number	LP150X1-F2IB
Manufacturer	LG
File Size	304.01 KB
Description	Liquid Crystal Display
Datasheet	LP150X1-F2IB_LG.pdf

LP150X1-F2IB Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 7 9 10 11 12 13 14 18 19 19 19 20 20 20 21 RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX A-1 A-2 A-3 A-4 OPTICAL CHARACTERISTIC MEASUREMENT

Features

Active screen size Outline dimensions Pixel pitch Pixel format Color depth Luminance,White Power Consumption Weight Display operating mode Surface treatments 15.0 inches (38.1cm) diagonal 315.5(H) × 242.3(V) × 7.0(D) mm (typ) 0.297 mm × 0.297 mm 1024 horiz. By 768 vert. pixels RGB stripe arrangement 6-bit, 262,144 colors 2 150 cd/m (typ) 685g (typ) ( center 1 point) 3.78Watt@150nit,Lamp) Total 4.93Watt(typ) (1.15Watt @VCC=3.3, Transmissive mode, normally white Hard coating(3H), Anti-glare tre.
