LP141WX5-TLN1 - WXGA TFT LCD

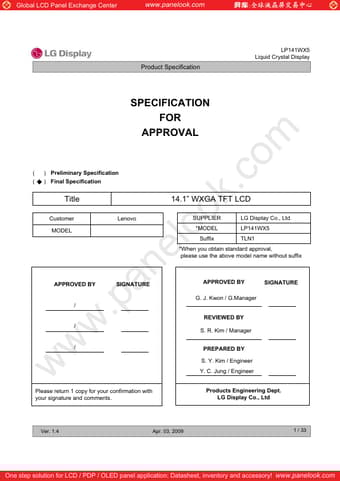

LP141WX5-TLN1 Datasheet Preview — Preview of LP141WX5-TLN1 PDF

Datasheet Details

Part number	LP141WX5-TLN1
Manufacturer	LG
File Size	1.03 MB
Description	WXGA TFT LCD
Datasheet	LP141WX5-TLN1-LG.pdf

LP141WX5-TLN1 Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 LVDS SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVEFORMS 3-6 COLOR INPUT DATA REFERNECE 3-7 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS A APPENDIX.Enhanced Extended Display Identi

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5(H,Typ. ) ϧ 205.5(V,Typ. ) ϧ 5.5(D,Max. ) [mm] 0.2373mm Ý 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2 (Typ.5 point) Total 3.5 Watt(Typ. ) @ LCM circuit 1.2 Watt (Typ. _Mosaic), B/L 2.3Watt(Typ. ) 400g(Max. ) Transmissive mode, normally white Glare treatment o.
