LP141WX5-TLA1 - Liquid Crystal Display

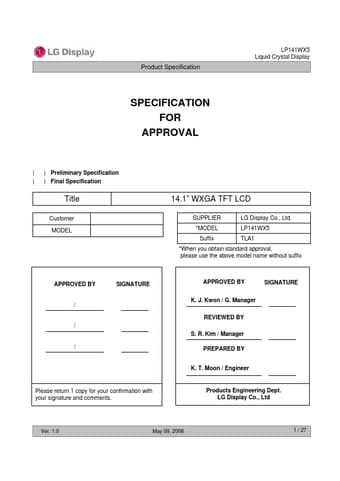

LP141WX5-TLA1 Datasheet Preview — Preview of LP141WX5-TLA1 PDF

Datasheet Details

Part number	LP141WX5-TLA1
Manufacturer	LG
File Size	317.23 KB
Description	Liquid Crystal Display
Datasheet	LP141WX5-TLA1_LG.pdf

LP141WX5-TLA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTION LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 8 10 10 11 12 13 16 20 SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identificatio

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5(H) 0.2373mm 206.5(V) .5.5(D,Max. ) [mm] 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 4.2 Watt(Typ. ) @ LCM circuit 1.2 Watt (Typ. ), LED B/L 3.0 Watt (Typ. ) 360g (Max. ) Transmissive mode, normally white Anti-glare treatment of the front.
