LP141WX1-TLE6 - LCD

📥 Download Datasheet

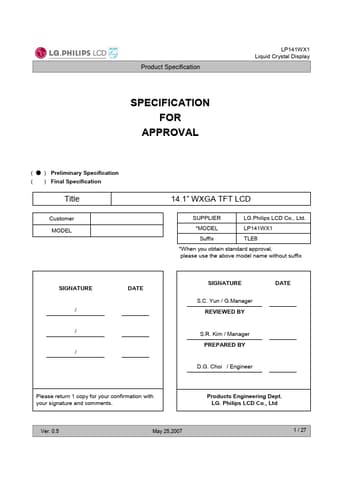

LP141WX1-TLE6 Datasheet Preview — Preview of LP141WX1-TLE6 PDF

Datasheet Details

Part number	LP141WX1-TLE6
Manufacturer	LG
File Size	750.16 KB
Description	LCD
Datasheet	LP141WX1-TLE6_LG.pdf

LP141WX1-TLE6 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.5 14.1 inches diagonal 320.0 (H) × 206.0(V) × 5.5(D) [mm] (Max. ) 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Min.5 point) Total 5.42 Watt(Typ. ) @ LCM circuit 1.32 Watt(Typ. ), B/L input 4.1 Watt(Typ. ) 425 g (Max. ), 415g(Typ. ) W/O Inverter & Down Bracket Transmi.
