LP141WX1-TL02 - Liquid Crystal Display

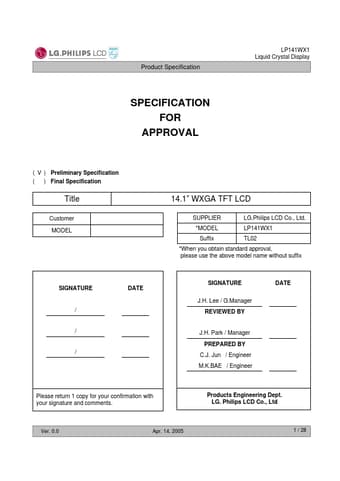

LP141WX1-TL02 Datasheet Preview — Preview of LP141WX1-TL02 PDF

Datasheet Details

Part number	LP141WX1-TL02
Manufacturer	LG
File Size	216.63 KB
Description	Liquid Crystal Display
Datasheet	LP141WX1-TL02_LG.pdf

LP141WX1-TL02 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data 21 21 22 23 24 26 28 Ver.0

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.0 14.1 inches diagonal 320 (H) × 206(V) × 5.5(D, max) mm 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 185 cd/m2(Typ.5 point) Total 5.9 Watt(Typ. ) @ LCM circuit 1.4Watt(Typ. ), B/L input 4.5Watt(Typ. ) 440 g (Max. ), 425g(Typ. ) Transmissive mode, normally white Glare treatment of the fr.
