LP141WX1-TL05 - WXGA TFT LCD

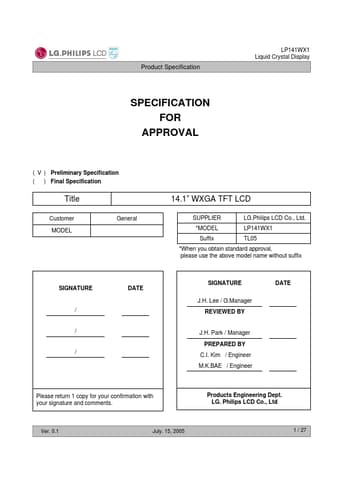

LP141WX1-TL05 Datasheet Preview — Preview of LP141WX1-TL05 PDF

Datasheet Details

Part number	LP141WX1-TL05
Manufacturer	LG
File Size	411.22 KB
Description	WXGA TFT LCD
Datasheet	LP141WX1-TL05-LG.pdf

LP141WX1-TL05 Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS A APPENDIX.Enhanced Extended Display Identification Data Ver.0.1 July.15, 2005

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 14.1 inches diagonal 320 (H) × 206(V) × 5.5(D, max) mm 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 185 cd/m2(Typ.5 point) Total 5.2 Watt(Typ. ) @ LCM circuit 1.1Watt(Typ. ), B/L input 4.1Watt(Typ. ) 425 g (Max. ), 415g(Typ. ) Transmissive mode, normally white Glare treatment of the front pol.
