LP141WP1-TLB8 - Liquid Crystal Display

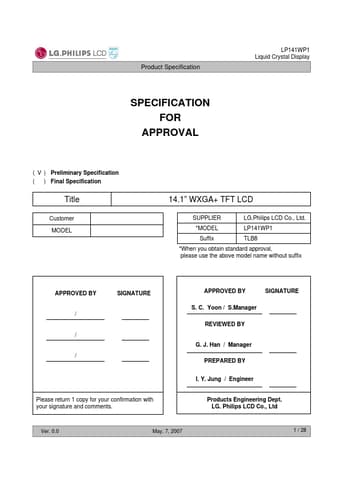

LP141WP1-TLB8 Datasheet Preview — Preview of LP141WP1-TLB8 PDF

Datasheet Details

Part number	LP141WP1-TLB8
Manufacturer	LG
File Size	400.55 KB
Description	Liquid Crystal Display
Datasheet	LP141WP1-TLB8_LG.pdf

LP141WP1-TLB8 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data (EEDIDTM) 21 21 22 22 23 25

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.0 14.1 inches diagonal 320 (H) × 206(V) × 5.5(D) mm [Max. ) 0.2109 mm × 0.2109 mm 1440 horiz. By 900 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 6.0 Watt(Typ. ) @ LCM circuit 1.9Watt(Typ. ), B/L input 4.1Watt(Typ. ) 435 g (Max. ), 425g(Typ. ) Transmissive mode, normally white Anti-glare.
