LP141WP1-TLA3 - WXGA+ TFT LCD

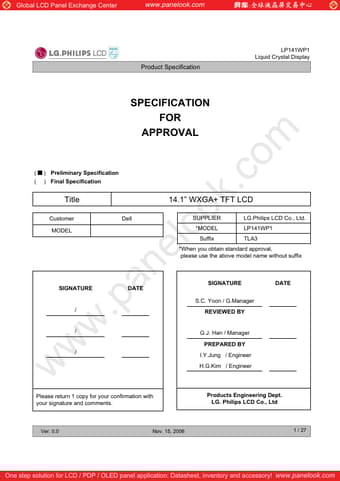

LP141WP1-TLA3 Datasheet Preview — Preview of LP141WP1-TLA3 PDF

Datasheet Details

Part number	LP141WP1-TLA3
Manufacturer	LG
File Size	915.08 KB
Description	WXGA+ TFT LCD
Datasheet	LP141WP1-TLA3-LG.pdf

LP141WP1-TLA3 Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS A APPENDIX.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 14.1 inches diagonal 320 (H) ϧ 206(V) Ý 5.5(D) mm [Max] 0.2109 mm Ý 0.2109 mm 1440 horiz. By 900 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 6.0 Watt(Typ. ) @ LCM circuit 1.9Watt(Typ. ), B/L input 4.1Watt(Typ. ) 435 g (Max. ), 425g(Typ. ) Transmissive mode, normally white Anti-glare treatment of the fro.
