LM238WF2-SSF1 - Full HD TFT LCD

📥 Download Datasheet

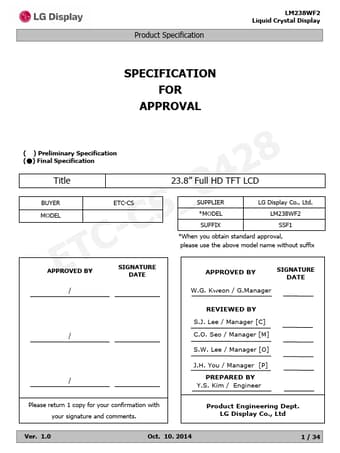

LM238WF2-SSF1 Datasheet Preview — Preview of LM238WF2-SSF1 PDF

Datasheet Details

Part number	LM238WF2-SSF1
Manufacturer	LG
File Size	670.65 KB
Description	Full HD TFT LCD
Datasheet	LM238WF2-SSF1-LG.pdf

LM238WF2-SSF1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE VLCD Power Dip Condition OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Contents ITEM LM238WF2 Liquid Crystal Display Page 1 2 3 4 5 6 6 9 14 15 16 17 18 19 27 30 31 31 31 32 32 32 33 Ver.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 CN2 (6PIN) Back light Assembly (LED) [ Figure 1 ] Block diagram 23.8 inches(60.47cm) diagonal 535.0(H) X 313.0(V) X 12.2 mm (Typ. ) 0.2745(H)mm x 0.2745(V)mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 16.7M colors (6bit + A-FRC) 250 cd/m2 ( Center 1 Point, Typ. ) View Angle Free (R/L 178(Typ. ), U/.
