LM238WF1-SLK1 - Full HD TFT LCD

📥 Download Datasheet

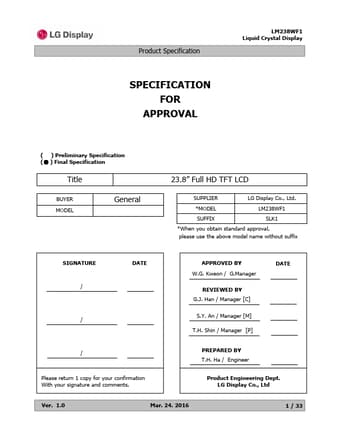

LM238WF1-SLK1 Datasheet Preview — Preview of LM238WF1-SLK1 PDF

Datasheet Details

Part number	LM238WF1-SLK1
Manufacturer	LG
File Size	1.64 MB
Description	Full HD TFT LCD
Datasheet	LM238WF1-SLK1-LG.pdf

LM238WF1-SLK1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS CHARACTREISTICS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE AND DIP CONDITION FOR LCD MODULE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Panel type Surface Treatment Ver. 1.0 CN2 (6PIN) Back light Assembly (LED) [ Figure 1 ] Block diagram 23.8 inches(604.70mm) diagonal 543.0(H) x 317.4(V) x 11.2(D) mm (Typ. ) 0.2745 mm x 0.2745 mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 16.78M colors (6bit + A-FRC) 250 cd/m2 ( Center 1 Point, Typ. ) View Angle Free (R/L 1.
