LM220WE1-TLB2 - WSXGA+ TFT LCD

📥 Download Datasheet

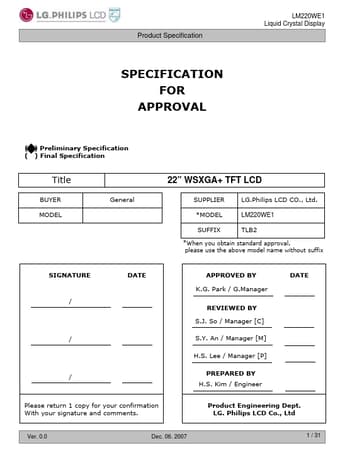

LM220WE1-TLB2 Datasheet Preview — Preview of LM220WE1-TLB2 PDF

Datasheet Details

Part number	LM220WE1-TLB2
Manufacturer	LG
File Size	699.30 KB
Description	WSXGA+ TFT LCD
Datasheet	LM220WE1-TLB2-LG.pdf

LM220WE1-TLB2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE VLCD POWER DIP CONDITION POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Ver.0.0 Dec.06. 2007 LM220WE1 Liquid Crystal Display Page 1 2 3 4 5 6 6 9 15 16 17 18 19 20 24 27 28 28

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 21.995 inches(558.673mm) diagonal (Aspect ratio 16:10) 493.7(H) x 320.1 (V) x 16.5(D) mm (Typ. ) 0.282mm x 0.282mm 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 16,7 M colors 300 cd/m2 (Center 1 point, Typ. ) Total 29.25 Watt(Typ. ) (4.370 Watt@VLCD, 24.88 Watt@300cd/[LAMP=7.5mA]) 2800 g (Typ. ) Transmissive mode, Normally White Hard c.
