LM220WE1-TLA1 - LCD

📥 Download Datasheet

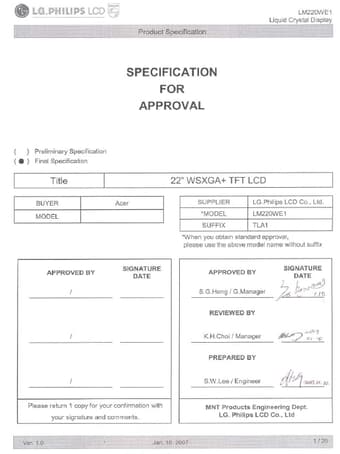

LM220WE1-TLA1 Datasheet Preview — Preview of LM220WE1-TLA1 PDF

Datasheet Details

Part number	LM220WE1-TLA1
Manufacturer	LG
File Size	1.11 MB
Description	LCD
Datasheet	LM220WE1-TLA1_LG.pdf

LM220WE1-TLA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 9 13 14 15 16 17 22 25 26 26 26 27 27 27 28 Ver.1.0 Jan.10. 2007 2 / 29 Datasheet pdf - http://www.DataSheet4U.net/ www

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 21.995 inches(558.673mm) diagonal (Aspect ratio 16:10) 493.7(H) x 320.1 (V) x 16.5(D) mm (Typ. ) 0.282mm x 0.282mm 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 16,7 M colors 300 cd/m2 (Center 1 point, Typ. ) Viewing Angle Free ( R/L 160(Typ. ), U/D 160(Typ) ) Total 29.25 Watt(Typ. ) (4.370 Watt@VLCD, 24.8.
