LM215WF1-TLF1 - Full HD TFT LCD

📥 Download Datasheet

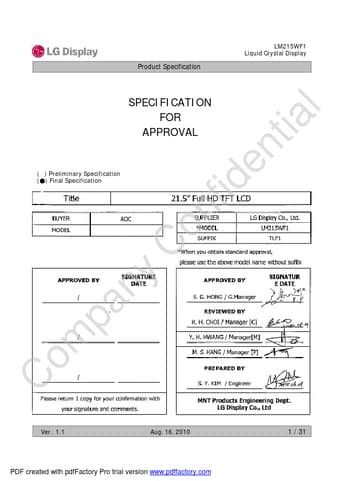

LM215WF1-TLF1 Datasheet Preview — Preview of LM215WF1-TLF1 PDF

Datasheet Details

Part number	LM215WF1-TLF1
Manufacturer	LG
File Size	564.55 KB
Description	Full HD TFT LCD
Datasheet	LM215WF1-TLF1-LG.pdf

LM215WF1-TLF1 Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 3-7 VLCD POWER DIP CONDITION 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 7-3 Environment 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS Contents ITEM LM215WF1 Liquid Crystal Display Pag

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.1 [ Figure 1 ] Block diagram 21.53 inches(546.86mm) diagonal 495.6(H) x 292.2(V) x 16.5(D) mm (Typ. ) 0.248 mm x 0.248mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 8-bit (6bit + A FRC) 300 cd/m2 ( Center 1 points) View Angle Free (R/L 170(Typ. ), U/D 160(Typ. )) Total 28.97W(typ)/logic4.97W, Inverter.
