LM215WF1-TLA1 - LCD

📥 Download Datasheet

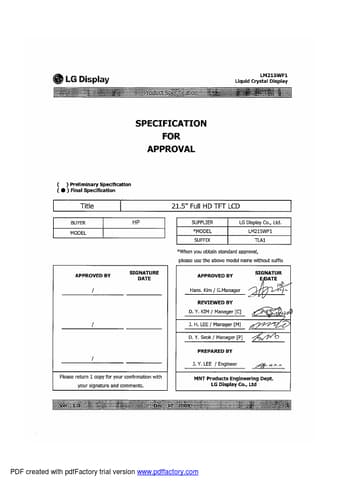

LM215WF1-TLA1 Datasheet Preview — Preview of LM215WF1-TLA1 PDF

Datasheet Details

Part number	LM215WF1-TLA1
Manufacturer	LG
File Size	661.05 KB
Description	LCD
Datasheet	LM215WF1-TLA1_LG.pdf

LM215WF1-TLA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE VLCD POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 9 13 14 15 16 17 18 24 25 28 28 28 29 29 29 30 Ver.1.0 Dec.12 .2008 2 / 31 PDF created with pd

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 [ Figure 1 ] Block diagram 21.53 inches(546.86mm) diagonal 495.6(H) x 292.2(V) x 16.5(D) mm (Typ. ) 0.248 mm x 0.248mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 8-bit (6bit + A FRC) 300 cd/m2 ( Center 1 points) View Angle Free (R/L 170(Typ. ), U/D 160(Typ. )) Total 28.5W(typ)/logic(4.5W), Inverter(2.
