LM190E01 - TFT LCD

📥 Download Datasheet

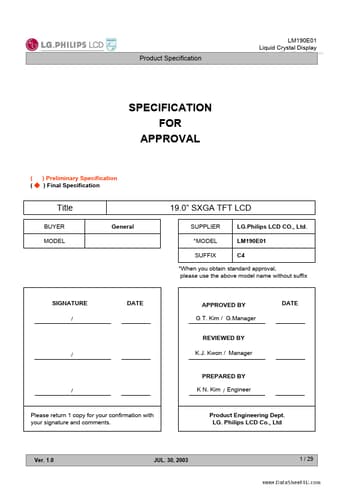

LM190E01 Datasheet Preview — Preview of LM190E01 PDF

Datasheet Details

Part number	LM190E01
Manufacturer	LG
File Size	521.75 KB
Description	TFT LCD
Datasheet	LM190E01_LG.pdf

LM190E01 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 9 12 13 14 15 16 20 23 24 24 24 25 25 25 26 Ver.1.0 JUL.30, 2003 2 / 29 LM190E01 Liquid Crystal Display Product Specif

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments 19.0 inches (481.84mm) diagonal 404.2(H) x 330.0(V) x 22.3(D) mm(Typ. ) 0.294 mm x 0.294 mm 1280 horizontal By 1024 vertical Pixels. RGB stripe arrangement LVDS 2Port 8-bit, 16,777,216 color 250 cd/m2 ( Center 1Point, typ) Viewing Angle Free [ R/L 176(Typ. ), U/D 176(Typ. ) ] Total 22.94 Watt(Typ. ), (3.29 Watt @.
