LM190WX1 - WXGA+ TFT LCD

LG PHILIPS

📥 Download Datasheet

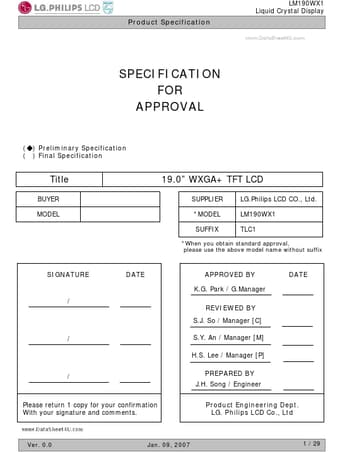

LM190WX1 Datasheet Preview — Preview of LM190WX1 PDF

Datasheet Details

Part number	LM190WX1
Manufacturer	LG Philips
File Size	554.23 KB
Description	WXGA+ TFT LCD
Datasheet	LM190WX1_LGPHILIPS.pdf

LM190WX1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STROAGE HANDLING P

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments Ver. 0.0 19.0 inches (481.4mm) diagonal 427.2(H) x 277.4(V) x 15.3(D) mm(Typ. ) 0.095.
RGB(H)mm x 0.285(V)mm 1440 horizontal By 900 vertical Pixels. RGB stripe arrangement LVDS 2Port 16.7M colors 300 cd/m2 ( Center 1Point, Typ. ) R/L 160(Typ. ), U/D 160(Typ. ) Total 24.6 Watt(Typ. ), (3 W@VLCD , 21.6 W@[Lamp=7.
