LM181E1-H2MN - Liquid Crystal Display

📥 Download Datasheet

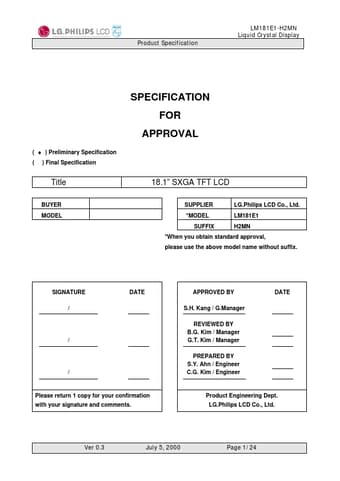

LM181E1-H2MN Datasheet Preview — Preview of LM181E1-H2MN PDF

Datasheet Details

Part number	LM181E1-H2MN
Manufacturer	LG
File Size	566.46 KB
Description	Liquid Crystal Display
Datasheet	LM181E1-H2MN_LG.pdf

LM181E1-H2MN Product details

Description

MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTION SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVE FORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX A-1 A-2 A-3 A-4 OPTICAL CHARACTERISTIC MEASUREMENT EQUIPMENT AND METHOD LUMINANCE RESPONSE TIME VIEWING ANGLE www.DataSheet.net/ ITEM Page 1 2 3 4 5

Features

The following are general feature of the model LM181E1-H2MN LCD; Active screen size Outline dimensions Pixel pitch Pixel format Color depth Luminance,White Power Consumption Weight Display operating mode Surface treatments 18.1 inches(45.97cm) diagonal 412.5(H) × 333.0(V) × 22.5(D) mm (Typ. ) 0.2805 mm × 0.2805 mm 1280 horiz. By 1024 vert. Pixels RGB stripe arrangement 8-bit, 16,777,216 colors 2 200 cd/m (Typ. ) 2 Total 29.16Watt,Typ. (6.6Watt @IVAA,22.56Watt@200cd/m [Lamp]) 2835 (Max. ) Transmissiv.
