LC320W01-A6K1, LC320W01 - TFT LCD

📥 Download Datasheet

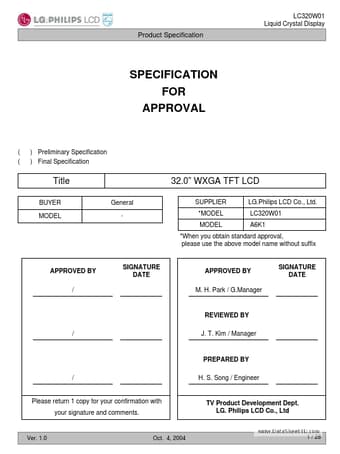

LC320W01-A6K1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LC320W01-A6K1, LC320W01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LC320W01-A6K1, LC320W01
Manufacturer	LG
File Size	936.35 KB
Description	TFT LCD
Datasheet	LC320W01_LGPhilips.pdf
Note	This datasheet PDF includes multiple part numbers: LC320W01-A6K1, LC320W01. Please refer to the document for exact specifications by model.

LC320W01-A6K1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTE

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment 31.51 inches(800.4mm) diagonal 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ. ) 170.25.
x 510.75.
x RGB 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8bit, 16,7 M colors 500 cd/m2 (Center 1 point) (Typ. ) Viewing angle free ( R/L 176(Typ. ), U/D 176(Typ. )) Total 88.7Watt (Typ. ) (Logic=4.7W, Lamp=84.0W [IBL=93.
