LC320W01-SL13 - LCD

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Dynamic C/R (for AI) Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.1 31.51 inches(800.4mm) diagonal 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ. ) 170.25㎛ x 510.75㎛ x RGB 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8bit, 16,7 M colors 500 cd/m2 (Center 1 point) (Typ. ) 1200:1 (Typ. ) Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) Total 89.4Watt (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LC320W01 TFT LCD LG Philips
LC320EM2 LCD TV Emerson
LC320EM2 SERVICE MANUAL Funai Electric
LC320EUA-AEM1 LCD Module RAKEN
LC320SS2 SERVICE MANUAL Funai Electric

Other Datasheets by LG Electronics

Part Number Description
LC320W01-SL14 WXGA TFT LCD
LC320W01-SL01 WXGA TFT LCD
LC320W01-SL05 WXGA TFT LCD
LC320W01-SL20 WXGA TFT LCD
LC320W01-SLA1 LCD

Full PDF Text Transcription

Click to expand full text

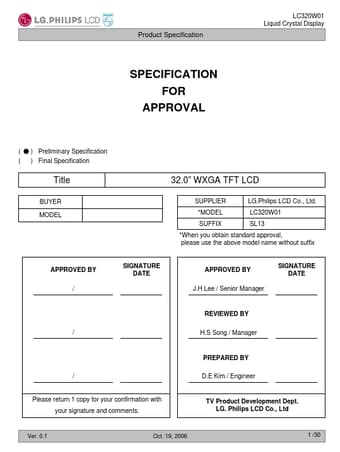

www.DataSheet.co.kr LC320W01 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ● ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 32.0” WXGA TFT LCD SUPPLIER *MODEL SUFFIX LG.Philips LCD Co., Ltd. LC320W01 SL13 *When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE APPROVED BY J.H Lee / Senior Manager SIGNATURE DATE REVIEWED BY / H.S Song / Manager PREPARED BY / D.E Kim / Engineer Please return 1 copy for your confirmation with your signature and comments. TV Product Development Dept. LG. Philips LCD Co., Ltd Ver. 0.1 Oct. 19, 2006 1 /30 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.
