LC320DXE-SFR1 - WXGA TFT LCD

📥 Download Datasheet

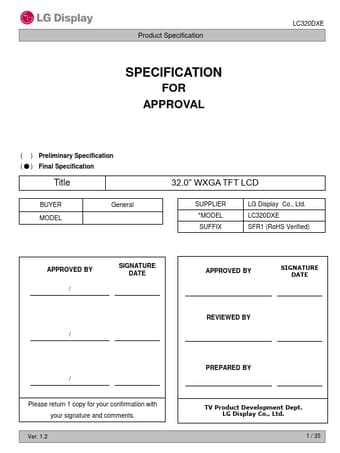

LC320DXE-SFR1 Datasheet Preview — Preview of LC320DXE-SFR1 PDF

Datasheet Details

Part number	LC320DXE-SFR1
Manufacturer	LG
File Size	1.37 MB
Description	WXGA TFT LCD
Datasheet	LC320DXE-SFR1-LG.pdf

LC320DXE-SFR1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.2 31.51 inches(800.4mm) diagonal 725.2 mm(H) x 424.4 mm(V) x 35.0 mm(D) (Typ. ) 170.25㎛ x 510.75㎛ x RGB 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8bit(D), 16,7 M colors 300 cd/m2 (Center 1 point) (Typ. ) Viewing angle free ( R/L 178(Min. ), U/D 178(Min. )) Total 35.66 W (Typ. ) (Logic=3.1 W , LED Driver = 32.56 W.
