LC216EXN-SCA1 - WXGA TFT LCD

📥 Download Datasheet

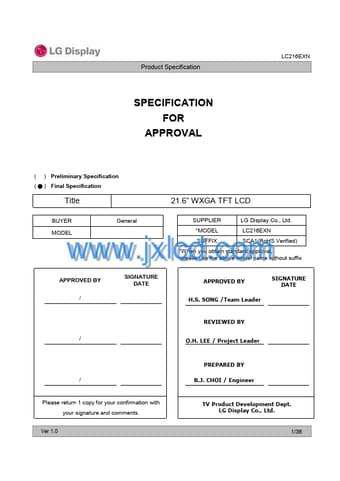

LC216EXN-SCA1 Datasheet Preview — Preview of LC216EXN-SCA1 PDF

Datasheet Details

Part number	LC216EXN-SCA1
Manufacturer	LG
File Size	1.21 MB
Description	WXGA TFT LCD
Datasheet	LC216EXN-SCA1-LG.pdf

LC216EXN-SCA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE ITEM Page 1 2 3 4 5 6 6 8 10 11 14 15 17 21 24 25 25 25 25 26 26 26 27 27 27 28 28 28 28 www.jxlcd.com www.jxlcd.com MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELEC

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver 1.0 21.6 inches(547.7mm) diagonal 501(H) × 297(V) × 14.5(D) (Typ. ) 0.1165 mm x 0.3495 mm 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement 8-bit(D), 16.7M colors 300 cd/m2 (Center 1point) (Typ. ) Viewing angle free ( R/L 178(Min. ), U/D 178(Min. )) Total 24.3W (Typ. ) (Logic=3.3W, LED Driver=21W, EXTVBR-B=100% ) 1,750g (Typ.
