LC215EUE-TCA1 - LCD

📥 Download Datasheet

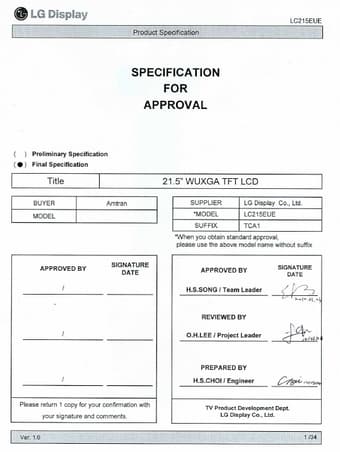

LC215EUE-TCA1 Datasheet Preview — Preview of LC215EUE-TCA1 PDF

Datasheet Details

Part number	LC215EUE-TCA1
Manufacturer	LG
File Size	1.24 MB
Description	LCD
Datasheet	LC215EUE-TCA1_LG.pdf

LC215EUE-TCA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATION COLOR DATA REFERENCE POWER SEQUENCE VLCD POWER DIP CONDITION OPTICAL SPECIFICATION MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORA

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 21.53 inches(546.86mm) diagonal 495.6(H) × 292.2(V) X 11.5(D) mm (Typ. ) 0.248 mm x 0.248 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 16.7M colors (6bit + A FRC) 250 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 170 (Typ. ), U/D 160 (Typ. )) Total 16.2W (Logic= 3.5W, LED Backlight =12.7W@ without Driver ) 1550.
